3Inch/4Inch AC/DC&WIDE VOLTAGE BRUSHLESS SCREW SOLAR PUMP | 4500 RPM DIFFUL &WELLUP WATER PUMP |Household Water Supply And Irrigation

3Inch/4Inch AC/DC&WIDE VOLTAGE  BRUSHLESS SCREW SOLAR PUMP | 4500 RPM DIFFUL  &WELLUP WATER PUMP |Household Water Supply And Irrigation
3Inch/4Inch AC/DC&WIDE VOLTAGE  BRUSHLESS SCREW SOLAR PUMP | 4500 RPM DIFFUL  &WELLUP WATER PUMP |Household Water Supply And Irrigation3Inch/4Inch AC/DC&WIDE VOLTAGE  BRUSHLESS SCREW SOLAR PUMP | 4500 RPM DIFFUL  &WELLUP WATER PUMP |Household Water Supply And Irrigation3Inch/4Inch AC/DC&WIDE VOLTAGE  BRUSHLESS SCREW SOLAR PUMP | 4500 RPM DIFFUL  &WELLUP WATER PUMP |Household Water Supply And Irrigation3Inch/4Inch AC/DC&WIDE VOLTAGE  BRUSHLESS SCREW SOLAR PUMP | 4500 RPM DIFFUL  &WELLUP WATER PUMP |Household Water Supply And Irrigation3Inch/4Inch AC/DC&WIDE VOLTAGE  BRUSHLESS SCREW SOLAR PUMP | 4500 RPM DIFFUL  &WELLUP WATER PUMP |Household Water Supply And Irrigation
CategoriesDIFFUL&WELLUP AC/DC SUBMERSIBLE PUMP
Trademark/BrandDIFFUL
Model4/6HJSC
MaterialStainless Steel
TypeBrushless Solar Pump
Warranty3/4HJSS-A/D(HV) 2-year ; 3/4HJSS-A/D-IN1-year
MOQ1set
Update TimeNov 1,2025
Detail Information

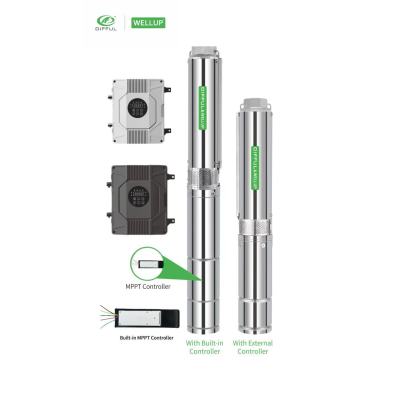

3Inch4Inch AC/DC&Wide Voltage Brushless Screw Solar Pump


3Inch4Inch AC/DC&Wide voltage brushless screw solar pump - stainless impeller, MPPT controller, brushless motor.
Features: 304 stainless steel impeller, corrosion resistant.
Greatly use for farm livestock,Off-grid household water supply, agricultural irrigation.
TECHNICAL DATA
ITEM
Built-in Controller Model
Voltage(AC)
Optimum input voltage(DC)
Power
Max.Flow
Max. Head
Outlet
Cable
Open circuit voltage(VOC)
VOC(-IN Model)
3HJSS-150-72-750-A/D(HV)
A/D-IN
85V-280V
100V-350V
750W
2m³/h
150m
0.75"
2m
<450V
<430V
4HJSS3.7-112-72-750-A/D(HV)
85V-280V
100V-350V
750W
2m³/h
150m
1"
2m
<450V
<430V

3Inch4Inch AC/DC&Wide Voltage Brushless Screw Solar Pump

HYDRAULIC PERFORMANCE CURVE

HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.

3Inch4Inch AC/DC&Wide Voltage Brushless Screw Solar Pump

CONTROLLER INTERNAL WIRING DIAGRAM

HOW TO CHOOSE SOLAR PANEL

3HJSS2-150-72-750-A/D(HV)
3HJSS2-150-72-750-A/D(HV)-IN
750W-72V solar panel
750w-72v solar panel-built in
4HJSS3.7-112-72-750-A/D(HV)
4HJSS3.7-112-72-750-A/D(HV)
750w-72v solar panel
750w-72v solar panel-built in
