Home / All / 4500RPM DIFFUL&WELLUP SOLAR SUBMERSIBLE PUMP / DIFFUL&WELLUP AC/DC SUBMERSIBLE PUMP / 6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D（7.5-37kw）BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER | 4000 RPM DIFFUL ＆WELLUP WATER PUMP | BEST SOLAR PUMP FOR SALES

6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D（7.5-37kw）BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER | 4000 RPM DIFFUL ＆WELLUP WATER PUMP | BEST SOLAR PUMP FOR SALES

Name: 6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D（7.5-37kw）BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER | 4000 RPM DIFFUL ＆WELLUP WATER PUMP | BEST SOLAR PUMP FOR SALES
Brand: DIFFUL
SKU: 18538405
Rating: 4.75 (10 reviews)

Categories	DIFFUL&WELLUP AC/DC SUBMERSIBLE PUMP
Trademark/Brand	DIFFUL
Model	6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D(HV)（7.5-37kw）
type	brushless solar water pump
material	plastic impeller
Warranty	6HJPC-A/D,6/8HJPC-A/D-2-year
Trademark/Brand	DIFFUL
Update Time	Nov 11,2025

Detail Information

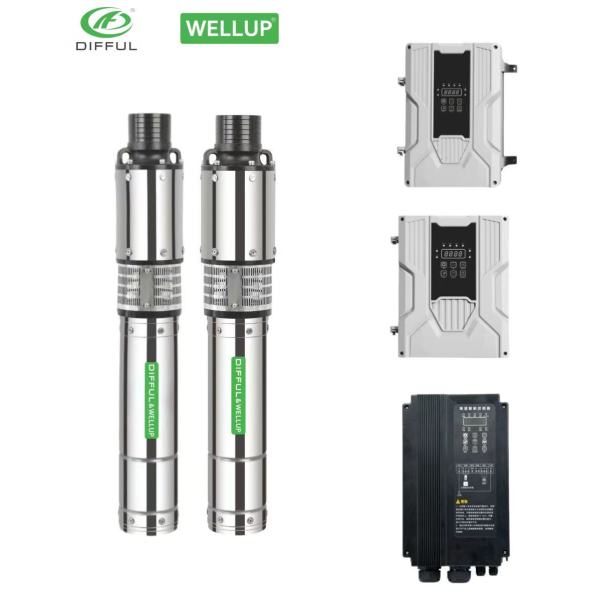

6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D（7.5-37kw BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

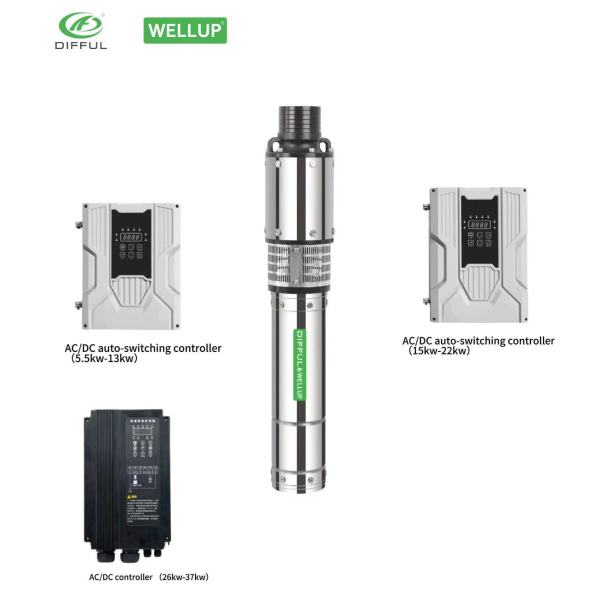

- 6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D(HV)（7.5-37kw） :brushless solar water pump - plastic impeller, MPPT controller, brushless motor,aims for farm livestock Off-grid household water supply irrigation.

- Features: Cost-effective,large flow and the preferred model for most customers.

- Hot-selling market: Southeast Asia, Middle East, South America, Africa,etc.

6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D（7.5-37kw BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

Technical Data

ITEM	Voltage	Optimum input voltage(DC)	Power	Max.Flow	Max Head	Outlet	Cable	Open circuit voltage (VOC)	Solar panel Power
6HJPC68-65-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	68m³/h	65m	3"	2m	<900V	≥1.3*PUMP POWER

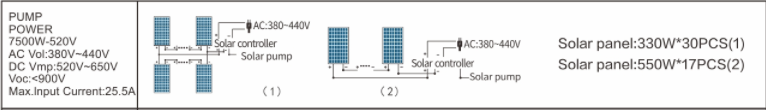

6HJPC68-85-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	68m³/h	85m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-117-380/520-11000-A/D	AC380/DC520V	520V-650V	11000W	68m³/h	117m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-144-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	68m³/h	144m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-167-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	68m³/h	167m	3"	2m	<900V	≥1.3*PUMP POWER

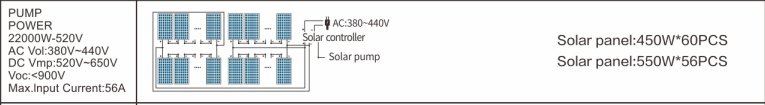

6HJPC68-197-380/520-22000-A/D	AC380/DC520V	520V-650V	22000W	68m³/h	197m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-233-380/520-26000-A/D	AC380/DC520V	520V-650V	26000W	68m³/h	233m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJPC68-282-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	68m³/h	282m	3"	2.5m	<800V	≥1.3*PUMP POWER

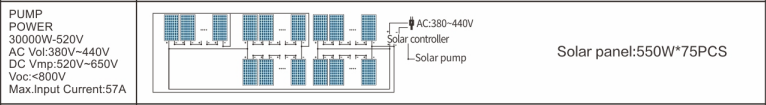

6HJPC68-330-380/520-30000-A/D	AC380/DC520V	520V-650V	30000W	68m³/h	330m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJPC88-48-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	88m³/h	48m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-72-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	88m³/h	72m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-95-380/520-11000-A/D	AC380/DC520V	520V-650V	11000W	88m³/h	95m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-120-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	88m³/h	120m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-148-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	88m³/h	148m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-175-380/520-22000-A/D	AC380/DC520V	520V-650V	22000W	88m³/h	175m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-200-380/520-26000-A/D	AC380/DC520V	520V-650V	26000W	88m³/h	200m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJPC88-225-380/520-30000-A/D	AC380/DC520V	520V-650V	30000W	88m³/h	225m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJPC88-250-380/520-37000-A/D	AC380/DC520V	520V-650V	37000W	88m³/h	250m	3"	2.5m	<800V	≥1.3*PUMP POWER
6/8HJPC135-35-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	135m³/h	35m	4"	2m	<900V	≥1.3*PUMP POWER
6/8HJPC135-75-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	135m³/h	75m	4"	2m	<900V	≥1.3*PUMP POWER
6/8HJPC135-113-380/520-22000-A/D	AC380/DC520V	520V-650V	22000W	135m³/h	113m	4"	2m	<900V	≥1.3*PUMP POWER
6/8HJPC135-150-380/520-37000-A/D	AC380/DC520V	520V-650V	37000W	135m³/h	150m	4"	2.5m	<800V	≥1.3*PUMP POWER
