Home / All / 4500RPM DIFFUL&WELLUP SOLAR WELL PUMP / DIFFUL&WELLUP AC/DC SOLAR WELL PUMP / 4Inch AC/DC&（3KW-7.5KW） BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL ＆WELLUP WATER PUMP | Hot sales solar water pump

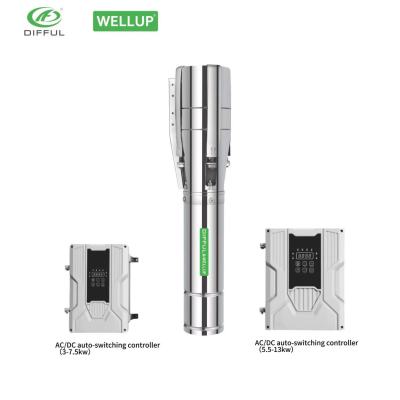

4Inch AC/DC&（3KW-7.5KW） BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL ＆WELLUP WATER PUMP | Hot sales solar water pump

Name: 4Inch AC/DC&（3KW-7.5KW） BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL ＆WELLUP WATER PUMP | Hot sales solar water pump
Brand: DIFFUL
SKU: 18537723
Rating: 4.75 (10 reviews)

Share
Categories	DIFFUL&WELLUP AC/DC SOLAR WELL PUMP
Trademark/Brand	DIFFUL
Model	4HJSC-A/D(HV)
type	brushless solar water pump
material	Stainless steel impeller
Warranty	4HJSC-A/D-2-year
Trademark/Brand	DIFFUL
Update Time	Dec 25,2025

Detail Information

4500 RPM DIFFUL&WELLUP WATER PUMP

Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.

Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.

4"AC/DC BRUSHLESS SOLAR WATER PUMP WITH S/S IMPELLER

- 4Inch AC/DC brushless solar water pump - Stainless impeller, MPPT controller, brushless motor,aims for farm livestock Off-grid household water supply irrigation.

- Features: Cost-effective,large flow and the preferred model for most customers.

- Hot-selling market: Southeast Asia, Middle East, South America, Africa,etc.

4"AC/DC BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

Technical Data

Model	Voltage	Optimum input voltage(DC)	Power	Max.Flow	Max Head	Outlet	Cable	Open circuit voltage (VOC)	Solar panel Power
4HJSC6-300-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	6m³/h	300m	1.25"	2m	<900V	≥1.3*PUMP POWER
4HJSC6-360-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	6m³/h	360m	1.25"	2m	<900V	≥1.3*PUMP POWER
4HJSC6-420-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	6m³/h	420m	1.25"	2m	<900V	≥1.3*PUMP POWER
4HJSC9.5-220-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	9.5m³/h	220m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC9.5-275-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	9.5m³/h	275m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC10-313-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	10m³/h	313m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC11-339-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	11m³/h	339m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC18-137-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	18m³/h	137m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC18-168-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	18m³/h	168m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC18-200-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	18m³/h	200m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC18-235-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	18m³/h	235m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC20-82-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	20m³/h	82m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC22-115-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	22m³/h	115m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC22-143-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	22m³/h	143m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC22-169-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	22m³/h	169m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC30-52-380/520-3000-A/D	AC380/DC520V	520V-650V	3000W	30m³/h	52m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC30-74-380/520-4000-A/D	AC380/DC520V	520V-650V	4000W	30m³/h	74m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC30-96-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	30m³/h	96m	2"	2m	<900V	≥1.3*PUMP POWER
4HJSC30-155-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	30m³/h	155m	2"	2m	<900V	≥1.3*PUMP POWER
