Surface Solar pumps

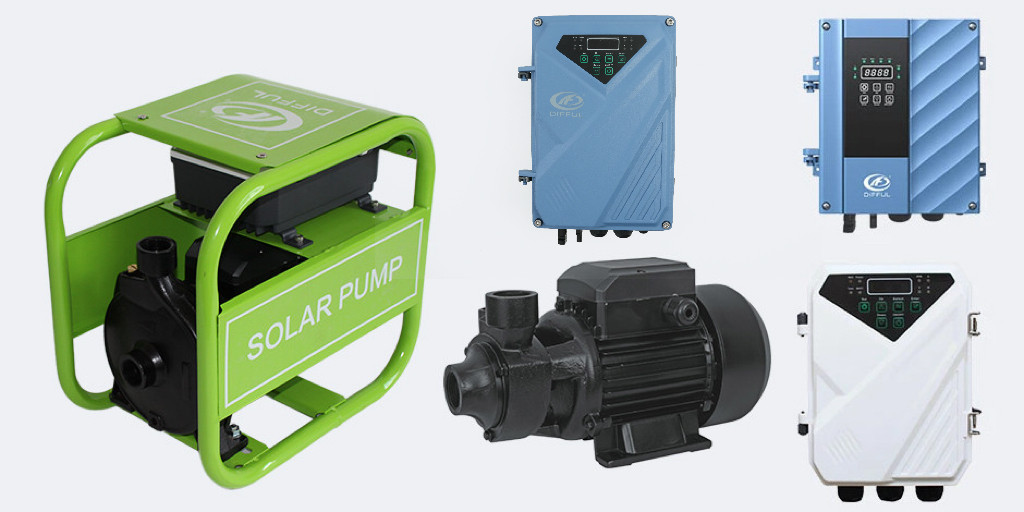

Surface Solar Pump

Solar surface water pumps mainly use solar energy to pump water from rivers, lakes, and ponds. Usually used in irrigation, pressurization, and other application scenarios. It is the most attractive way of supplying water in sunny regions of the world today, especially in remote areas where electricity is scarce.
Maximum Power
2.2kw
Maximum Lift
65Meters
Maximum Flow
60m³/h
ISO

Advantages of Surface Solar Pump

Solar powered surface pump's energy comes from the sun, does not require any fuel, and the operating and maintenance costs are comparatively low.
DIFFUL Surface Pump Motor Interior

Advantages of Surface Solar Pump

  • Permanent magnet DC brushless synchronous motor: the efficiency is increased by 15%-20%; Save energy; Reduce the consumption of solar panels.
  • The whole 304 stainless steel rotor shaft avoids the risk of broken shaft.
  • Copper impeller.
  • Japanese brand NSK bearing: longer working life and high reliability.
  • Alloy mechanical seal: longer working life and high reliability.
  • Enameled wire adopts 180°C high temperature resistant copper wire, insulation class F.
  • Cold-rolled 600 silicon steel sheet stator and rotor.
  • The magnet is made of 40SH aluminum iron boron material, and the temperature resistance can reach 150 ℃.
  • Intelligent water shortage protection: When there is no water in the well, the program will automatically stop and start automatically after 30 minutes.

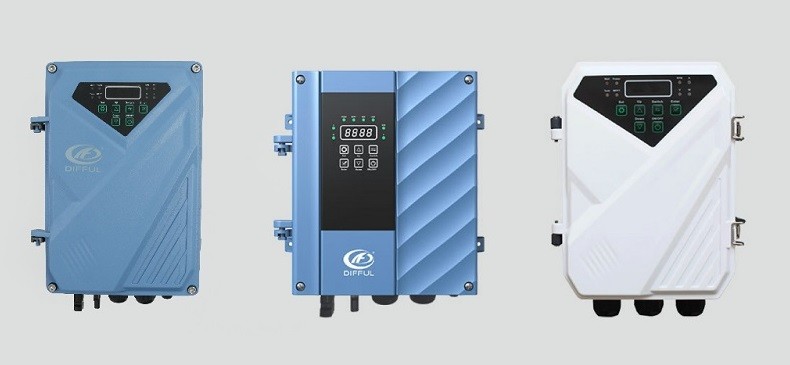

DIFFUL Controller

Advantages of The Pump Controller

  • Waterproof grade: IP65
  • Wide open circuit voltage range
  • Ambient temperature: -15℃~60℃
  • Maximum input current: 17A
  • MPPT function, the solar power utilization rate is higher
  • LED displays the power, voltage, current, speed, and other working conditions
  • Automatically adjust the speed according to the power of sunlight, or manually change the speed according to the actual demand
  • Automatically start and stop working, no need for personnel to operate
  • Soft start: no impulse current, protect the pump motor
  • Protection functions such as overvoltage/undervoltage/overcurrent/phase loss/short circuit/water shortage/high temperature protection.

Hot Sale Surface Solar Pumps and Parameters

Innovative Technology-leading Solar Pump Manufacturer
DC DQB series solar surface pump

DC DQB series solar surface pump

The direct current generated by the solar panels runs the pumps directly, eliminating the need for expensive batteries, grid connections or generators. High head, often used to increase water pressure.

Main application:
irrigation boosting, high-rise building water boosting.
Maximum lift:
65m
Maximum flow:
27m3/h
Maximum power:
750w
DCPM series solar surface pump

DCPM series solar surface pump

The direct current generated by the solar panels runs the pumps directly, eliminating the need for expensive batteries, grid connections or generators. Large flow, often used to pump water from rivers and lakes for irrigation.

Main application:
agricultural irrigation, livestock drinking water.
Maximum lift:
24m
Maximum flow:
50m3/h
Maximum power:
1500w
AC/DC DQB series solar surface pump

AC/DC DQB series solar surface pump

Compatible with both DC and AC modes. When solar energy is sufficient to run the pump, solar energy is preferred. When solar power and voltage are insufficient, it will automatically switch to AC power. AC input supports 85-280v single-phase electricity.

Main application:
irrigation boosting, high-rise building water boosting.
Maximum lift:
65m
Maximum flow:
3m3/h
Maximum power:
750w

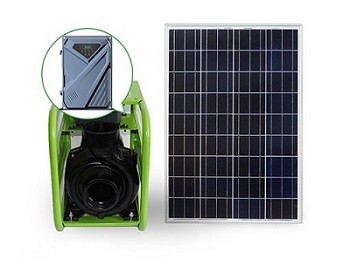

AC/DC DCPM series solar surface pump

AC/DC DCPM series solar surface pump

Compatible with both DC and AC modes. The two modes can be switched automatically. Prioritize the use of solar power. For applications requiring longer or constant pumping times, AC/DC hybrid power input is a better choice. Large flow, can meet the large area irrigation needs.

Main application:
agricultural irrigation, livestock drinking water.
Maximum lift:
24m
Maximum flow:
60m3/h
Maximum power:
2200w

Advantages of Surface Solar Pump Kits

Innovative Technology-leading Solar Pump Manufacturer
Advantages of Surface Solar Pump Kits
o need to install infrastructureNo need to install infrastructure
Using solar pumping means you can install a pumping system anywhere. There is no need to consider the feasibility of electrical infrastructure and the associated costs.
Low operating costLow operating cost
Compared to diesel pumps, the system uses free energy (solar energy) to support the system and does not require fossil fuels. Fully automatic operation and no need for personnel on duty. Therefore, operating costs can be greatly saved. Operating costs are almost zero.
Easy to install and moveEasy to install and move
The water pump is easy to install, and it can work directly after connecting the solar panel and the water pipe. The DCPM series has a frame, the controller and the water pump are installed on the frame and can be transported directly.
Solar Booster Pump for Irrigation

Solar Booster Pump for Irrigation

Solar Surface Pump for Irrigation

Solar Surface Pump for Irrigation

Solar Surface Pump for Livestock

Solar Surface Pump for Livestock

Surface Solar Pump Questions and Answers

quote
Q:

How to choose the suitable product model?

A:

Enter your detailed technical requirements in the form below and we will recommend suitable products to you.

Q:

Can the surface solar pump be used to pump water from a well?

A:

The maximum suction lift of the surface pump is 6 meters. You can also use a surface solar pump if your borehole water level is within 6 meters of the well. If the water level is more than 6 meters underground, please use a submersible pump for pumping water.

Q:

What is the difference between DQB and DCPM series?

A:

DQB water pump series has high lift and small flow. It is usually used for high-rise building water and irrigation boosting. The DQB series comes without a frame. DCPM water pump series has small head and large flow. Usually used for farmland irrigation, livestock drinking water, etc. DCPM series has a frame.
