Home / All / 4500RPM DIFFUL&WELLUP SOLAR SUBMERSIBLE PUMP / DIFFUL&WELLUP AC/DC SUBMERSIBLE PUMP / 4"AC/DC&WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM SOLAR PUMP| Irrigation&rid-off water supply

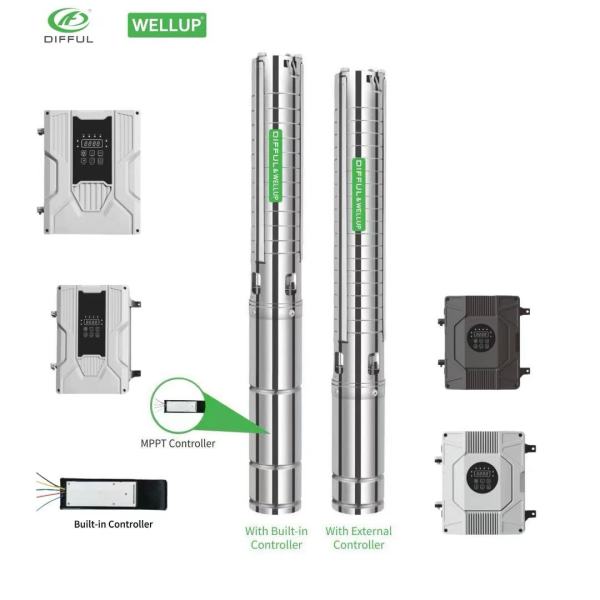

4"AC/DC&WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM SOLAR PUMP| Irrigation&rid-off water supply
| Categories | DIFFUL&WELLUP AC/DC SUBMERSIBLE PUMP |
|---|---|
| Trademark/Brand | DIFFUL |
| Model | 4HJSC-A/D(HV) |
| Material | Stainless Steel |
| Type | Brushless Solar Pump |
| Warranty | 4HJSS-A/D(HV)-2 year;4HJSS-A/D(HV) -IN 1-year |
| MOQ | 1set |
| Certificate | CE, ISO9001 |
| Update Time | Nov 4,2025 |
Detail Information
4"AC/DC&WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER
4"AC/DC &Wide voltage brushless solar pump with S/S impeller - stainless impeller, MPPT controller, brushless motor.
-Farm livestock ,off-grid household water supply and agricultural irrigation.
-Features:stable large flow, wide voltage and high resistance.
-Brand new typies of models and auto-switching controller of 2.2KW-3KW could selected by you in 4500RPM series.
4"AC/DC &WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER TECHNICAL DATA
| ITEM | Built-in Controller Model | Voltage(AC) | Optimum input voltage(DC) | Power | Max.Flow | Max. Head | Outlet | Cable | Open circuit voltage(VOC) | VOC(-IN Model) |
4HJSC3.5-105-110-750-A/D(HV) | A/D-IN | 85V-280V(/) | 110V-350V | 750W | 3.5m³/h | 105m | 1.25" | 2m | <450V | <430V |
4HJSC3.5-140-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 3.5m³/h | 140m | 1.25" | 2m | <450V | <430V | |
4HJSC4.8-203-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 4.8m³/h | 203m | 1.25" | 2m | <450V | <430V | |
4HJSC6-67-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 6m³/h | 67m | 1.25" | 2m | <450V | <430V | |
4HJSC6-101-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 6m³/h | 101m | 1.25" | 2m | <450V | <430V | |
4HJSC6-146-110-1300-A/D(HV) | 85V-280V(/) | 110V-350V | 1300W | 6m³/h | 146m | 1.25" | 2m | <450V | <430V | |
4HJSC9.5-50-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 9.5m³/h | 50m | 1.25" | 2m | <450V | <430V | |
| 4HJSC9.5-75-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 9.5m³/h | 75m | 1.25" | 2m | <450V | <430V | |
| 4HJSC9.5-90-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 9.5m³/h | 90m | 1.25" | 2m | <450V | <430V |
| 4HJSC15-45-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 15m³/h | 45m | 2" | 2m | <450V | <430V | |
| 4HJSC15-55-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 15m³/h | 55m | 2" | 2m | <450V | <430V | |
| 4HJSC16-70-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 16m³/h | 70m | 2" | 2m | <450V | <430V | |
| 4HJSC20-48-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 20m³/h | 48m | 2" | 2m | <450V | <430V | |
4HJSC25-26-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 25m³/h | 26m | 2" | 2m | <450V | <430V | |
4HJSC6-255-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 6m³/h | 255m | 1.25" | 2m | <450V | <430V | |
4HJSC6-300-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 6m³/h | 300m | 1.25" | 2m | <450V | <430V | |
4HJSC6-360-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 6m³/h | 360m | 1.25" | 2m | <450V | ||
4HJSC9.5-136-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 9.5m³/h | 136m | 2" | 2m | <450V | <430V | |
4HJSC9.5-220-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 9.5m³/h | 220m | 2" | 2m | <450V | <430V | |
4HJSC9.5-275-300-4000) | 120V-280V | 120V-280V | 4000W | 9.5m³/h | 275m | 2" | 2m | <450V | ||
4HJSC18-95-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 18m³/h | 95m | 2" | 2m | <450V | <430V | |
4HJSC18-137-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 18m³/h | 137m | 2" | 2m | <450V | <430V | |
4HJSC18-168-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 18m³/h | 168m | 2" | 2m | <450V | ||
4HJSC20-70-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 20m³/h | 70m | 2" | 2m | <450V | <430V | |
4HJSC20-82-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 20m³/h | 82m | 2" | 2m | <450V | <430V | |
4HJSC22-115-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 22m³/h | 115m | 2" | 2m | <450V | ||
4HJSC30-36-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 30m³/h | 36m | 2" | 2m | <450V | <430V | |
4HJSC30-52-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 30m³/h | 52m | 2" | 2m | <450V | <430V | |
4HJSC30-74-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 30m³/h | 74m | 2" | 2m | <450V |

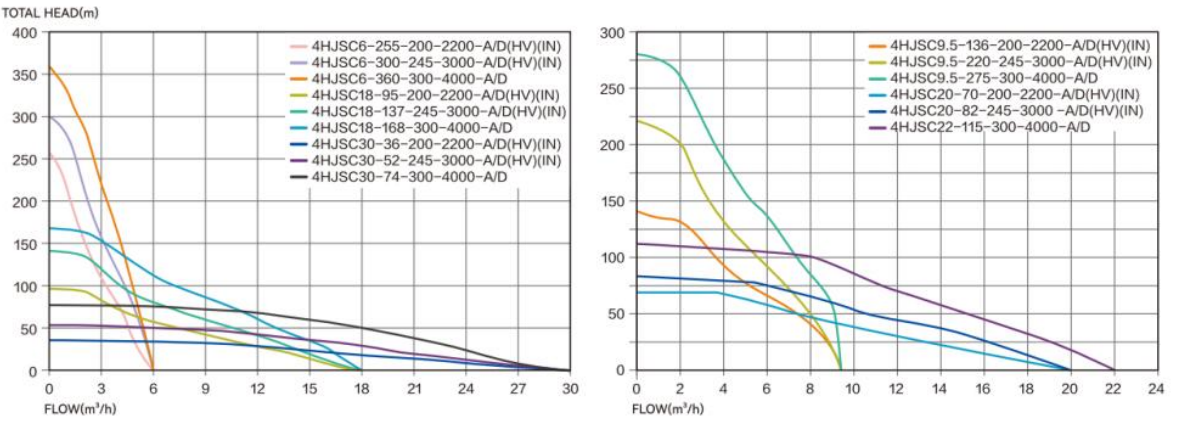

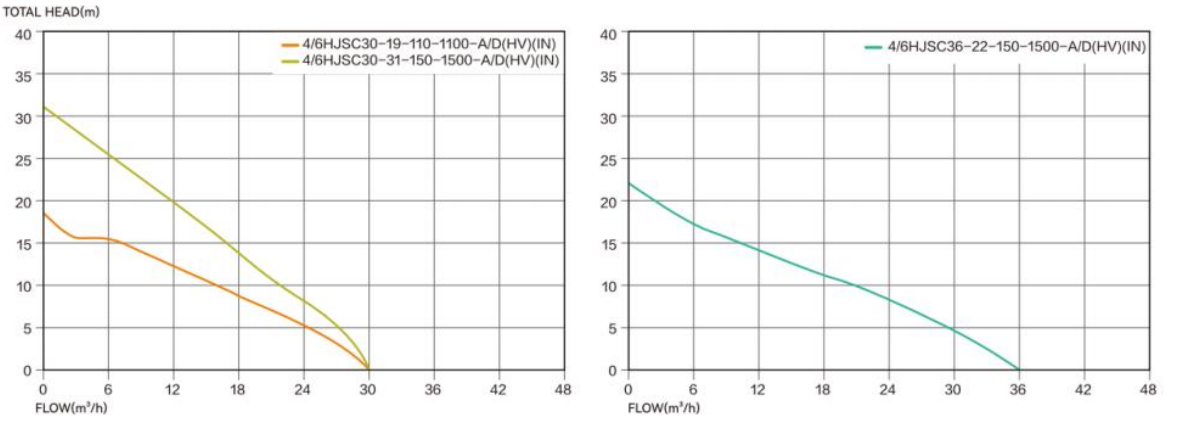

4"AC/DC &WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER Performance Curve
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.
