Innovative Technology-leading Solar Pump Manufacturer
- Solar Submersible Pump
Use solar power to pump groundwater. Provides a cost-effective way to supply users with safe and clean water.
- Solar Surface Pump
Your preferred irrigation system. Automated systems reduce operating costs while increasing crop yields.
- Solar Pool Pump
Using a solar pool pump makes a lot of sense, and pools tend to get more use when the sun is shining.
- DC Water-filled Motor Solar Pump
Submerging depth can reach 150 metersMore energy saving and environmental protection with water-filled motor
- High Speed Deep Well Pump
The whole pump is small volume, saving the pump installation cost into the well.Maximum 6000RPM.
- Solar Aerator Pumps
Reduce reliance on the grid, reduce carbon emissions and reduce operating costs to ensure your production is on target.
- Water Pump Controller Technology
MPPT technology maximizes the power utilization of photovoltaic modules and continues to improve.
- Pump Motor Technology
Water-filled motors ensure reliability and avoid oil contamination. Brushless DC motor is specially designed for solar power.
3"DC BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL ＆WELLUP WATER PUMP |EXCELLENT PUMP FOR WATER SUPPLY
| Categories | DIFFUL&WELLUP DC SUBMERSIBLE PUMP |
|---|---|
| Trademark/Brand | DIFFUL |
| Model | 3HJSC |
| Material | Stainless Steel |
| Type | Brushless Solar Pump |
| Warranty | 3HJSC 2-year ; 3HJSC-IN 1-year |
| MOQ | 1set |
| Update Time | Oct 30,2025 |

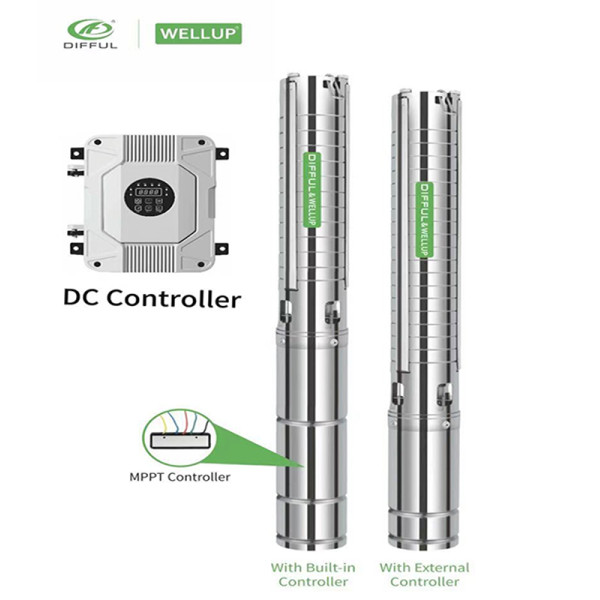

3"DC Brushless Solar Pump with S/S Impeller
| ITEM | Built-in Controller Model | Voltage | Optimum input voltage(DC) | Power | Max.Flow | Max. Head | Outlet | Cable | Open circuit voltage(VOC) | VOC(-IN Model) |
| 3HJSC4.5-35-24-300 | -IN | 24V | 30V-48V | 300W | 4.5m³/h | 35m | 1.25" | 2m | <60V | <60V |
| 3HJSC4.5-50-48-400 | 48V | 60V-90V | 400W | 4.5m³/h | 50m | 1.25" | 2m | <120V | <105V | |
| 3HJSC4.5--80-48-600 | 48V | 60V-90V | 600W | 4.5m³/h | 80m | 1.25" | 2m | <120V | <105V | |
3HJSC4.8-95-48-750 | 48V | 60V-90V | 750W | 4.8m³/h | 95m | 1.25" | 2m | <120V | <105V | |
3HJSC4.8-95-72-750 | 72V | 90V-120V | 750W | 4.8m³/h | 95m | 1.25" | 2m | <170V | <155V | |
3HJSC5-112-72-1100 | 72V | 90V-120V | 1100W | 5m³/h | 112m | 1.25" | 2m | <170V | <155V | |
3HJSC5-112-110-1100 | 110V | 110V-150V | 1100W | 5m³/h | 112m | 1.25" | 2m | <220V | <205V | |
3HJSC5-135-110-1500 | 110V | 110V-150V | 1500W | 5m³/h | 135m | 1.25" | 2m | <220V | <205V | |
3HJSC6-45-48-600 | 48V | 60V-90V | 600W | 6m³/h | 45m | 1.25" | 2m | <120V | <105V | |
3HJSC6-60-48-750 | 48V | 60V-90V | 750W | 6m³/h | 60m | 1.25" | 2m | <120V | <105V | |
3HJSC6-60-72-750 | 72V | 90V-120V | 750W | 6m³/h | 60m | 1.25" | 2m | <170V | <155V | |
3HJSC6-60-85-110-1100 | 110V | 110V-150V | 1100W | 6m³/h | 85m | 1.25" | 2m | <220V | <205V | |
3HJSC6-115-110-1500 | 110V | 110V-150V | 1500W | 6m³/h | 115m | 1.25" | 2m | <220V | <205V |
3"DC Brushless Solar Pump WithS/S Impeller

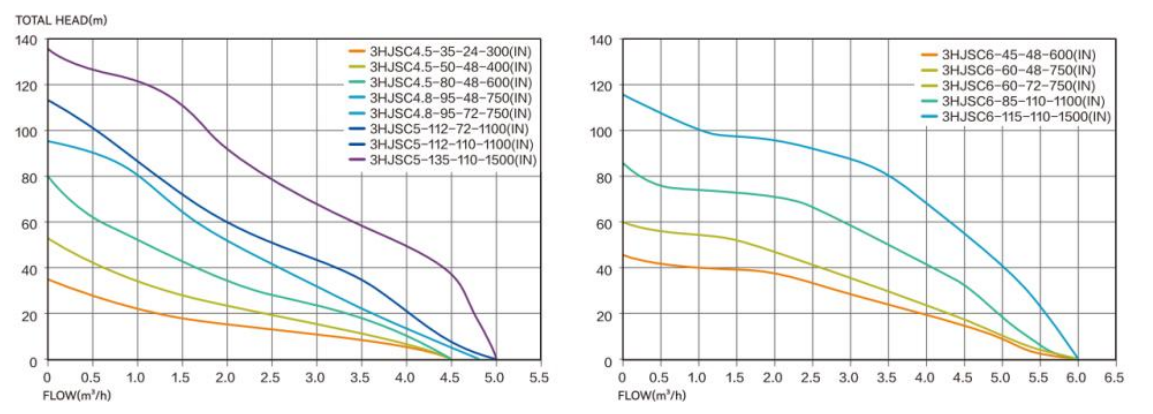

HYDRAULIC PERFORMANCE CURVE
