DIFFUL 20m3/h flow high speed deep well pump | 6000RPM Motor | High Flow Irrigation | Solar Water Pump Manufacturer

DIFFUL 20m3/h flow high speed deep well pump | 6000RPM Motor | High Flow Irrigation | Solar Water Pump Manufacturer

DIFFUL 20m3/h flow high speed deep well pump | 6000RPM Motor | High Flow Irrigation | Solar Water Pump Manufacturer
DIFFUL 20m3/h flow high speed deep well pump | 6000RPM Motor | High Flow Irrigation | Solar Water Pump ManufacturerDIFFUL 20m3/h flow high speed deep well pump | 6000RPM Motor | High Flow Irrigation | Solar Water Pump ManufacturerDIFFUL 20m3/h flow high speed deep well pump | 6000RPM Motor | High Flow Irrigation | Solar Water Pump ManufacturerDIFFUL 20m3/h flow high speed deep well pump | 6000RPM Motor | High Flow Irrigation | Solar Water Pump ManufacturerDIFFUL 20m3/h flow high speed deep well pump | 6000RPM Motor | High Flow Irrigation | Solar Water Pump Manufacturer
CategoriesHIGH SPEED DEEP WELL PUMP
BrandDIFFUL
Model4DGS20
Typehigh speed deep well pump
MaterialStainless steel
Package typeWooden case
Warranty2 years
CertificateCE, ISO9001
ApplicationHousehold;irrigation,livestock
Update TimeMay 24,2024
Detail Information
DIFFUL AC/DC Submersible Deep Well Pump with 20m³/h Rated Flow
DIFFUL AC/DC Submersible Deep Well Pump with 20m³/h Rated Flow
6000RPM High-Speed Deep Well Pump for 20 cubic meters of water per hour (20 m³/h)
When it comes to industrial or agricultural operations with significant water demands, a high-speed deep well pump with a rated flow rate of 20 m³/h is the ideal choice. This classification refers to pumps capable of delivering a volume of 20 cubic meters of water per hour. They are commonly employed in irrigation systems, large-scale agricultural operations, and industrial processes that heavily rely on water.

DIFFUL AC/DC Submersible Deep Well Pump with 20m³/h Rated Flow Technical Data
ITEM
Rated flow/h)
Rated head(m)
Max.flow/h)
Max.head(m)
AC voltage(V)
OptimumDC voltage(V)
Open circuit voltage
(VOC)
Power
(kw)
Outlet
(inch)
Outlet
diameter
(mm)
Cable(m)
Pump height(mm)
Pump
weight
(kg)
4DGS20-28/2-3000-A/D
20
28
27
52
380
520-750
<780
3
2
100
2
642
9.8
4DGS20-52/3-5500-A/D
20
52
27
75
380
520-750
<780
5.5
2
100
2
751
12.3
4DGS20-78/4-7500-A/D
20
78
27
108
380
520-750
<780
7.5
2
100
2
936
16.5
4DGS20-117/7-11000-A/D
20
117
27
188
380
520-750
<780
11
2
100
2
1207
20.5

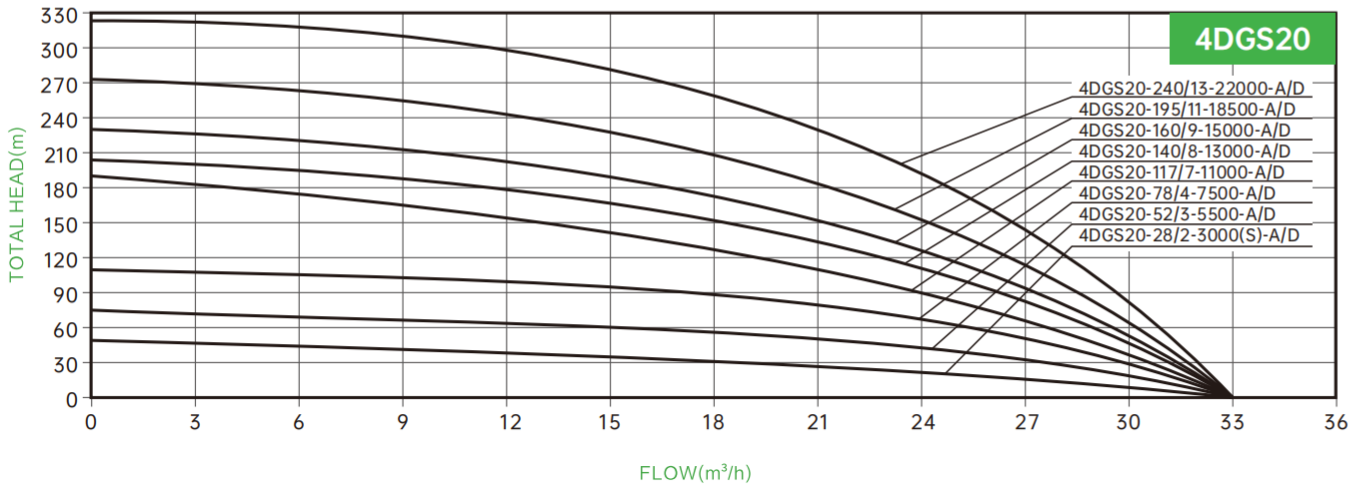

DIFFUL AC/DC Submersible Deep Well Pump with 20m³/h Rated Flow Hydraulic Performance Curves
DIFFUL AC/DC Submersible Deep Well Pump with 20m³/h Rated Flow
How to choose a solar pump:
1. Confirm your technical requirements
How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?


2. Choose solar pumps according to your needs
Calculate the "actual lift needed" and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.
How to calculate the Head?
DIFFUL AC/DC Submersible Deep Well Pump with 20m³/h Rated Flow Packaging
6000rpm Deep Well Pump packaging
What we get for you: (Package Include)
- 1 x 4inch high-speed deep well pump with 2m cable
- 1 x AC/DC auto-switching controller with MPPT function
- 1 x Stainless steel or plastic float switch (sensor for tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
What You need to get by yourself: (Package DO NOT Include)
- Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up is required.
- Poly pipe from pump to the water tank. ( recommend 2inch or over-diameter poly pipe)
- Wire power cable (3 wires plus earth). we recommend cable size at least can't chicker than the original cable in the pump.
6000rpm High Speed Deep Well Pump with 3m³/h Rated Flow FAQ
What is the difference between High-Speed Deep Well pump and Conventional deep well pump?
The maximum speed of the high-speed deep well pump is 6000 rpm, which is smaller and lighter than that of ordinary deep well pumps with the same performance. Low installation cost.
What if the product has quality problems?
2 years warranty. Any quality problem, please send the photo or video to us for checking, we will guide you to solve the problem online. If the quality problem can’t be solved by yourself, we can send the spare parts to you for replacement.
AC/DC  Auto-Switching Controller Internal Wiring Diagram
How To Choose Solar Panel
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DGS20-28/2-3000S-A/D model matches the solar panel voltage between 480V~780V.
4DGS20-28/2-3000-A/D
4DGS20-52/3-5500-A/D
4DGS20-78/4-7500-A/D
4DGS20-117/7-11000-A/D
