Innovative Technology-leading Solar Pump Manufacturer
- Solar Submersible Pump
Use solar power to pump groundwater. Provides a cost-effective way to supply users with safe and clean water.
- Solar Surface Pump
Your preferred irrigation system. Automated systems reduce operating costs while increasing crop yields.
- Solar Pool Pump
Using a solar pool pump makes a lot of sense, and pools tend to get more use when the sun is shining.
- DC Water-filled Motor Solar Pump
Submerging depth can reach 150 metersMore energy saving and environmental protection with water-filled motor
- High Speed Deep Well Pump
The whole pump is small volume, saving the pump installation cost into the well.Maximum 6000RPM.
- Solar Aerator Pumps
Reduce reliance on the grid, reduce carbon emissions and reduce operating costs to ensure your production is on target.
- Water Pump Controller Technology
MPPT technology maximizes the power utilization of photovoltaic modules and continues to improve.
- Pump Motor Technology
Water-filled motors ensure reliability and avoid oil contamination. Brushless DC motor is specially designed for solar power.

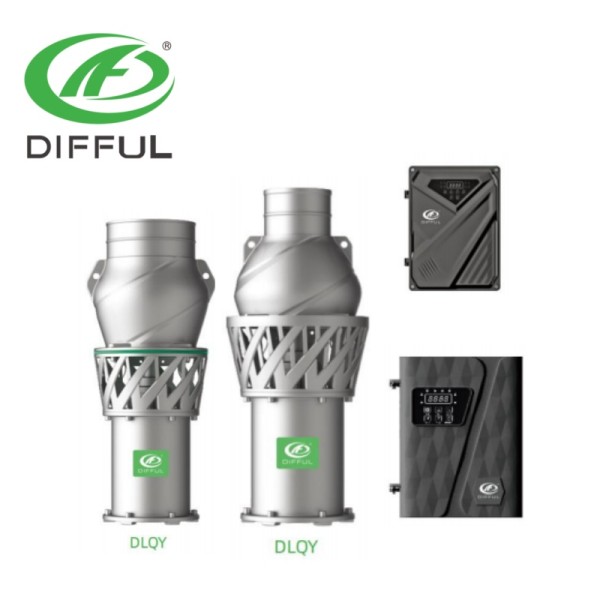

AC/DC large flow oil-immersed submersible pump with centrifugal impeller
AC/DC large flow oil-immersed submersible pump with centrifugal impeller
| Categories | AC/DC SOLAR SUBMERSIBLE PUMP |
|---|---|
| Brand | DIFFUL |
| Model | DLQY-A/D |
| Type | AC/DC oil-immersed pump with centrifugal impeller |
| Pump Body Material | Stainless steel |
| Outlet Material | Stainless steel |
| impeller Material | Stainless steel |
| Package type | wooden case |
| Warranty | 2 years |
| Certificate | CE |
| Update Time | May 22,2025 |
AC/DC OIL-SUBMERSIBLE PUMP WITH CENTRIFUGAL IMPELLER
ITEM | Rated flow(m³/h) | Rated head(m) | Max.flow(m³/h) | Max.head(m) | AC voltage(V) | Optimum DC voltage (V) | Open circuit voltage (VOC) | Power (kw) | Outlet (inch) | Cable (m) |
| DLQY40-21-4-A/D | 40 | 21 | 95 | 26 | 380 | 520-750 | <780 | 4 | 100 | 12 |
| DLQY50-22-5.5-A/D | 50 | 22 | 100 | 30 | 380 | 520-750 | <780 | 5.5 | 100 | 12 |
| DLQY100-16-7.5-A/D | 100 | 16 | 237 | 22 | 380 | 520-750 | <780 | 7.5 | 150 | 12 |
| DLQY70-14-4-A/D | 70 | 14 | 95 | 26 | 380 | 520-750 | <780 | 4 | 100 | 12 |
DLQY80-15-5.5-A/D | 80 | 15 | 100 | 30 | 380 | 520-750 | <780 | 5.5 | 100 | 12 |
DLQY150-12-7.5-A/D | 150 | 12 | 237 | 22 | 380 | 520-750 | <780 | 7.5 | 150 | 12 |
AC/DC CENTRIFUGAL IMPELLER OIL-SUBMERSIBLE PUMP PARAMETER
HOW TO CHOOSE A PUMP
Confirm you technical requiremt
Compare your requiremt with our product
