Home / All / DC SOLAR PUMP / HIGH VOLTAGE SOLAR SUBMERSIBLE PUMP /

Large flow HV solar submersible pump, wide voltage range, solar submersible pump manufacturer,agricultural irrigation

Large flow HV solar submersible pump, wide voltage range, solar submersible pump manufacturer,agricultural irrigation

Large flow HV solar submersible pump, wide voltage range, solar submersible pump manufacturer,agricultural irrigation
Large flow HV solar submersible pump, wide voltage range, solar submersible pump manufacturer,agricultural irrigationLarge flow HV solar submersible pump, wide voltage range, solar submersible pump manufacturer,agricultural irrigationLarge flow HV solar submersible pump, wide voltage range, solar submersible pump manufacturer,agricultural irrigationLarge flow HV solar submersible pump, wide voltage range, solar submersible pump manufacturer,agricultural irrigation
CategoriesHIGH VOLTAGE SOLAR SUBMERSIBLE PUMP
BrandDIFFUL
ModelDQD-HV
Typesolar submersible pump
Pump Body Materialaluminum
Package typewooden case
Warranty2 years
CertificateCE, GS, RoHS
Update TimeMay 1,2025
Detail Information
HV HIGH FLOW SOLAR SUBMERSIBLE PUMP
ITEM
Voltage
Optimum input voltage(DC)
Power
Max.Flow
Max.Head
Outlet
Cable
DQD7-26-110-750-HV
110V
110V-350V
750W
7m³/h
26m
1''
5m
DQD12-30-110-1100-HV
110V
110V-350V
1100W
12m³/h
30m
1.5''
5m
DQD25-25-110-1100-HV
110V
110V-350V
1100W
25m³/h
25m
2''
5m
DQD30-28-110-1500-HV
110V
110V-350V
1500W
30m³/h
28m
2''
5m
DQD35-20-110-1500-HV
110V
110V-350V
1500W
35m³/h
20m
2.5''
5m
DQD50-10-110-1500-HV
110V
110V-350V
1500W
50m³/h
10m
3''
5m

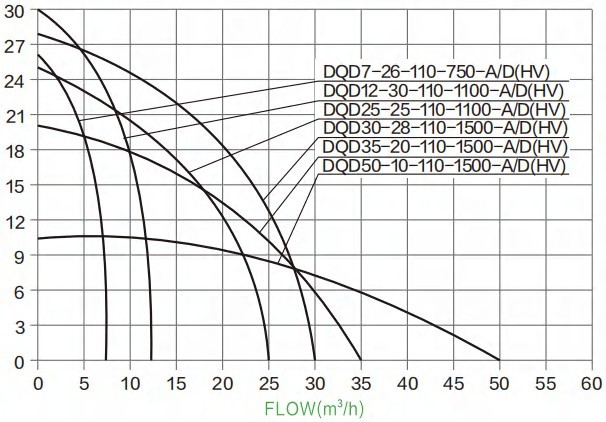

HV HIGH FLOW SOLAR SUBMERSIBLE PUMP PARAMETER

HOW TO CHOOSE A PUMP

Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.

CONTROLLER INTERNAL WIRING DIAGRAM

HOW TO CHOOSE SOLAR PANEL
DQD7-26-110-750-HV
DQD7-26-110-750-HV
DQD12-30-110-1100-HV
DQD25-25-110-1100-HV
DQD12-30-110-1100-HV
DQD30-28-110-1500-HV
DQD35-20-110-1500-HV
DQD50-10-110-1500-HV

PRODUCT PACKAGING
We offer you: (package included)
- 1 x High flow solar submersible pump with a 5 meter cable
- 1 x DC pump controller with MPPT function
- 1 x Cable connection connector kit
- 1 x Connector kit for waterproofing
Items you will need to purchase yourself: (not included in the package)
- Suitable solar panel.
