Why Testing and Commissioning Are Critical in Solar Pump Projects
In solar pump projects, completion of equipment installation does not mean the system can be directly put into long-term operation. For distributors and engineering installers, post-installation testing and commissioning constitute a vital stage in the delivery process of solar water pumping systems. Comprehensive inspection of the operating conditions of solar pumps, control systems and power supply components helps detect defects in installation or configuration in advance and improve the operational stability of projects.
First of all, it is necessary to verify the matching between the solar power supply system and the solar pump. Solar pumps are generally deployed in off-grid scenarios. Therefore, the configuration of solar panels, voltage parameters and power rating will affect the performance of off grid water pump systems. During installation and commissioning, installers shall check whether the total power of solar panels meets the requirements of the pump. Meanwhile, confirm that the VOC and VMP parameters of solar panels fall within the input range of the solar pump controller, so as to prevent equipment startup failures caused by mismatched voltage.
Secondly, inspect the operating status of the solar pump controller. As a core component of solar water pumping systems, the solar pump controller regulates solar power input and governs pump operation. During commissioning, verify whether parameters including controller display data, voltage, electric current and operating frequency work normally. For controllers equipped with MPPT function, further confirm that they can adjust operating status in response to sunlight variations to boost solar energy utilization efficiency.
For projects adopting solar water pumps for agriculture and solar water well pump systems, special emphasis shall be placed on testing practical operating performance. Installers need to check pump startup performance, water output flow, water pressure and continuous running conditions. Combined with well depth, water level fluctuation and actual water consumption demands, confirm that the solar pump system satisfies the application requirements of the project.
In addition, circuit connections and protection measures should be examined during the commissioning phase. Since most solar pumps are installed outdoors, cable connections, waterproof treatment and equipment fixation will affect long-term operation. Standardized installation and commissioning can reduce potential failures requiring maintenance in later stages.

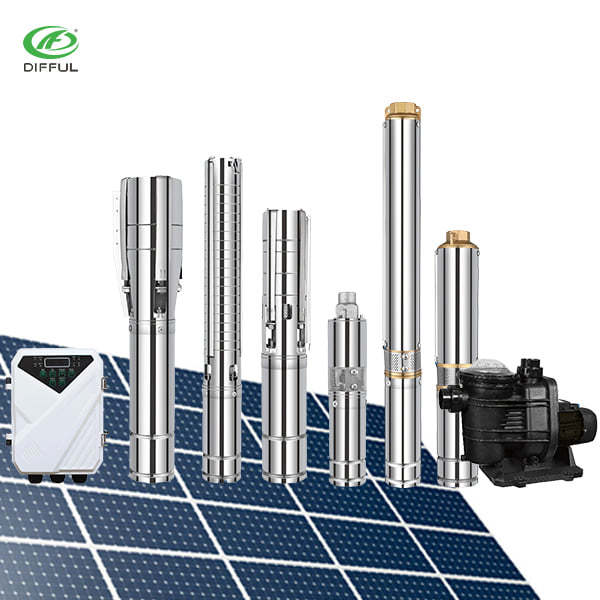

As a solar water pump manufacturer, DIFFUL focuses on the R&D and production of solar water pumping products, supplying distributors with a wide range of solar pumps and supporting solar pump controllers. DIFFUL controllers are integrated with MPPT functions, enabling direct connection to solar panels without additional inverters, which helps simplify the installation structure of off grid water pump systems.
For distributors, a complete testing and commissioning procedure not only enables customers to operate solar water well pump systems properly, but also lowers after-sales service workload. Appropriate system matching, standardized installation and professional commissioning deliver stable operation of solar pump projects, laying solid support for long-term market promotion.
DIFFUL is an innovative and technology-leading manufacturer of solar pumps, specializing in DC solar pumps, AC/DC hybrid solar pumps, and shielded motor solar pumps. Since our establishment in 1989, we have maintained a 100% focus on this industry, with hundreds of thousands of our pumps in use worldwide. Our commitment to quality is evident through the use of high-precision and fully automatic processing machines, advanced assembly lines, and testing equipment to enhance efficiency and ensure top-notch products. Furthermore, we have established our own controller production and research and development workshop, guaranteeing that every step of the production process is meticulously controlled. We are actively seeking distributors and offering support for OEM partnerships. If there are any further discussions or details that need to be addressed, please feel free to contact us. We appreciate your attention and trust.
