Working Principle of Solar Pump MPPT Controller
As a manufacturer of solar water pumps, DIFFUL has been driving product upgrades through innovative technologies. Today, we provide users with a straightforward explanation of the mystery behind the MPPT controller, a core component of DIFFUL solar water pumps. It acts as the "intelligent brain" of the pump system, converting every ray of sunlight into a steady flow of water.
I. Without MPPT, Solar Panels "Cannot Perform at Full Potential"
The power generation of solar panels does not follow the rule that "higher voltage and current mean higher power". Their output characteristic resembles a "hill" — only at a specific voltage point does the power generation reach its optimal state.When sunlight fluctuates (on cloudy days, in the morning or evening) or temperature changes, the position of this "optimal state" shifts constantly.
· An ordinary pump connected directly to solar panels often operates away from the "optimal state", utilizing only 60%-80% of solar energy, resulting in a huge waste of light energy.
· Especially in off-grid areas such as remote farmlands, pastoral areas and mountainous regions, water supply efficiency is greatly reduced.
II. DIFFUL MPPT: Locking "Maximum Solar Power" in Three Steps

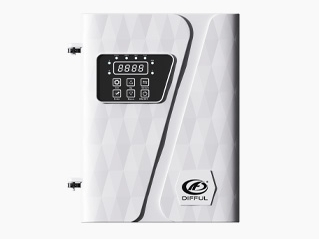

The self-developed DIFFUL MPPT controller keeps solar panels operating at the "maximum power state" at all times through real-time monitoring, intelligent tracking and dynamic matching:
1. Real-time "Diagnosis"Detects the voltage and current of solar panels hundreds of times per second, and accurately calculates real-time power generation.
2. Intelligent "Peak Finding"Equipped with an advanced algorithm, it locates the maximum power point like "climbing a hill":
· Slightly adjust the voltage; continue adjusting in the same direction if power increases
· Adjust in the opposite direction if power decreases, quickly locking the maximum power point
1. Efficient "Power Transmission"After locking the optimal power, it stably transmits electric energy to the pump motor and automatically adjusts the pump speed:
· Strong sunlight → high speed and large water output
· Weak sunlight → stable operation without easy shutdown
· Extremely weak sunlight → intelligent protection, waiting for sunlight recovery
III. DIFFUL MPPT: Three Core Advantages Empowering Global Water Supply
· 20%-30% Higher Efficiency: Under the same lighting conditions, it extracts 20%-30% more water than ordinary controllers, greatly improving the efficiency of farmland irrigation and domestic water supply.
· Stronger Low-light Performance: Operates stably in early morning, evening and cloudy days, reducing pump start-stop times and extending the service life of motors and mechanical seals.
· More Flexible Adaptation: Wide voltage adaptation supports the combination of different specifications of solar panels, making system construction more flexible and reducing initial investment costs.
IV. Technology Empowerment, Serving the World
The DIFFUL MPPT controller is fully applied to the company's full range of solar water pump products. With high efficiency, stability and reliability, it serves more than 100 countries and regions around the world, providing green energy solutions for agricultural irrigation, pastoral drinking water and water supply in remote areas.
In the future, DIFFUL will continue to focus on solar water pump technologies, constantly optimizing MPPT algorithms and product performance. With the vision of "Energy from sunlight, water from nature, service for life", we will provide global users with more efficient and intelligent clean energy water solutions.
DIFFUL is an innovative and technology-leading manufacturer of solar pumps, specializing in DC solar pumps, AC/DC hybrid solar pumps, and shielded motor solar pumps. Since our establishment in 1989, we have maintained a 100% focus on this industry, with hundreds of thousands of our pumps in use worldwide. Our commitment to quality is evident through the use of high-precision and fully automatic processing machines, advanced assembly lines, and testing equipment to enhance efficiency and ensure top-notch products. Furthermore, we have established our own controller production and research and development workshop, guaranteeing that every step of the production process is meticulously controlled. We are actively seeking distributors and offering support for OEM partnerships. If there are any further discussions or details that need to be addressed, please feel free to contact us. We appreciate your attention and trust.
