AC/DC solar submersible pump with plastic impeller 4inch solar powered pump for irrigation

AC/DC solar submersible pump with plastic impeller 4inch solar powered pump for irrigation

AC/DC solar submersible pump with plastic impeller 4inch solar powered pump for irrigation
AC/DC solar submersible pump with plastic impeller 4inch solar powered pump for irrigationAC/DC solar submersible pump with plastic impeller 4inch solar powered pump for irrigationAC/DC solar submersible pump with plastic impeller 4inch solar powered pump for irrigationAC/DC solar submersible pump with plastic impeller 4inch solar powered pump for irrigation
CategoriesAC/DC SOLAR SUBMERSIBLE PUMP
BrandDIFFUL
Model4DPC-A/D
TypeAC/DC solar pump with plastic impeller
Pump Body MaterialStainless steel
Outlet MaterialBrass
impeller MaterialPlastic
Package typewooden case
Warranty2 years
CertificateCE, GS, RoHS
Update TimeMar 29,2024
Detail Information

4 INCH AC/DC SOLAR PUMP WITH PLASTIC IMPELLER

4" PLASTIC IMPELLER SOLAR PUMP
ModelPower(W)Voltage(V)Max flow(m3/h)Max head(m)Outlet(inch)
4DPC6-56-110-750-A/D7501106561.25"
4DPC6-84-150-1100-A/D11001506841.25"
4DPC6-112-150-1300-A/D130015061121.25"
4DPC6-135-200-1500-A/D150020061351.25"
4DPC6-175-300-2200-A/D220030061751.25"
4DPC9-45-110-750-A/D7501109452"
4DPC9-58-150-1100-A/D11001509582"
4DPC9-71-150-1300-A/D13001509712"
4DPC9-85-200-1500-A/D15002009852"
4DPC9.5-125-300-2200-A/D22003009.51252"
4DPC13-36-110-750-A/D75011013362"
4DPC13-49-150-1100-A/D110015013492"
4DPC13-54-150-1300-A/D130015013542"
4DPC13-60-200-1500-A/D150020013602"
4DPC13-110-300-2200-A/D2200300131102"
4DPC17-48-200-1500-A/D150020017482"

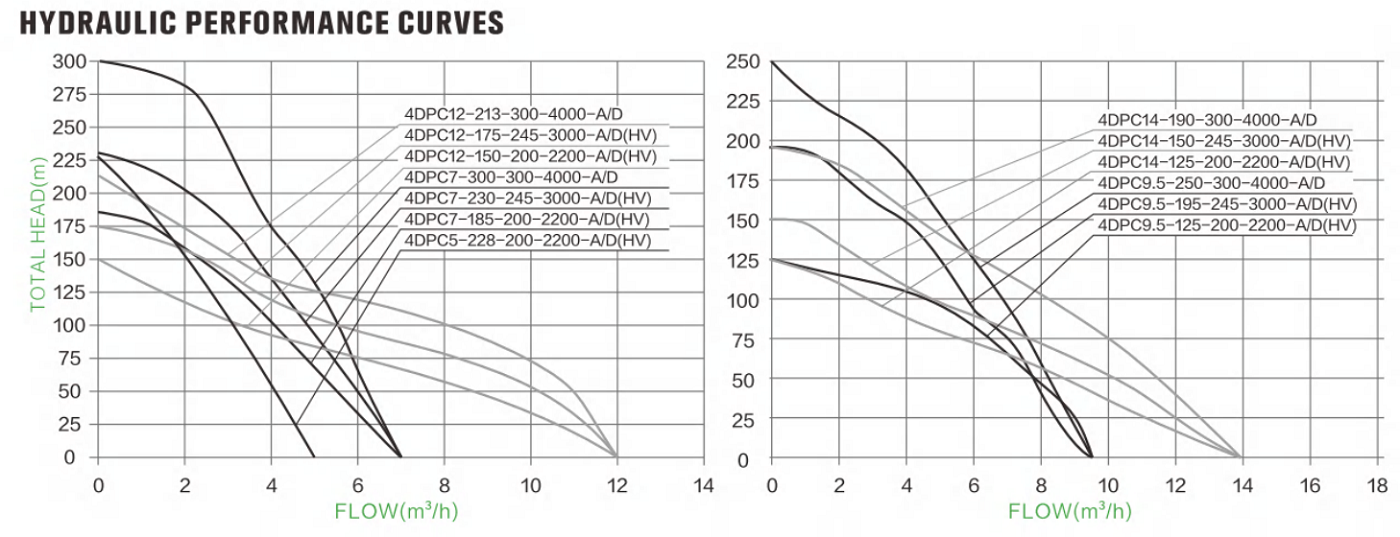

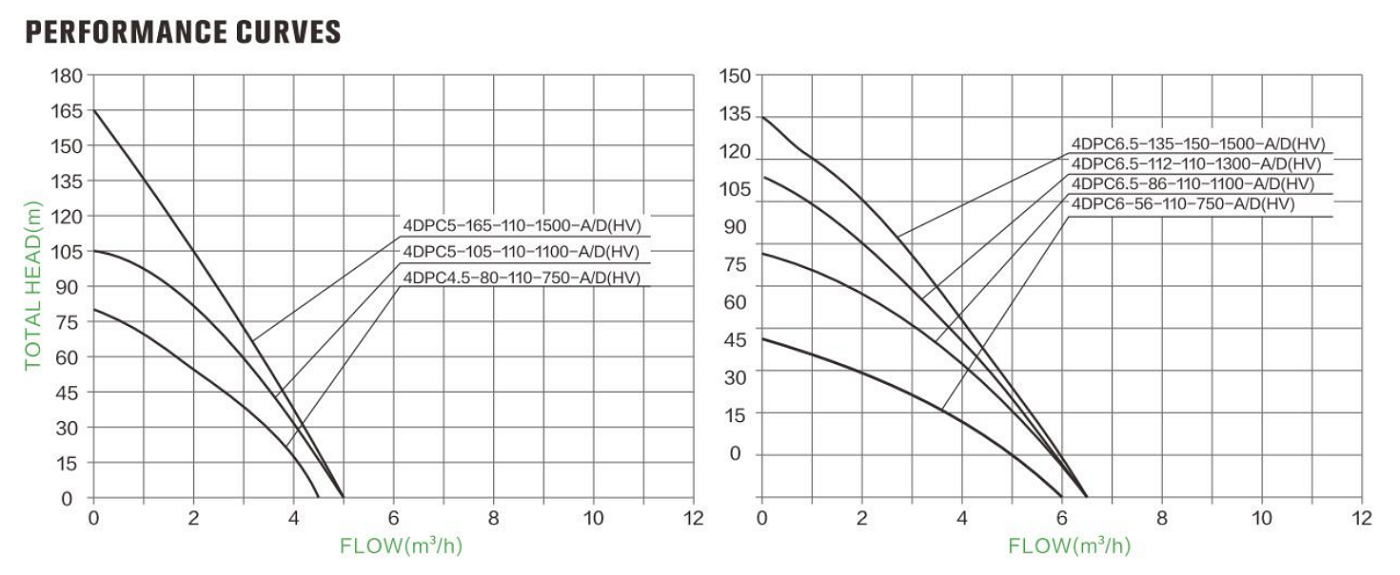

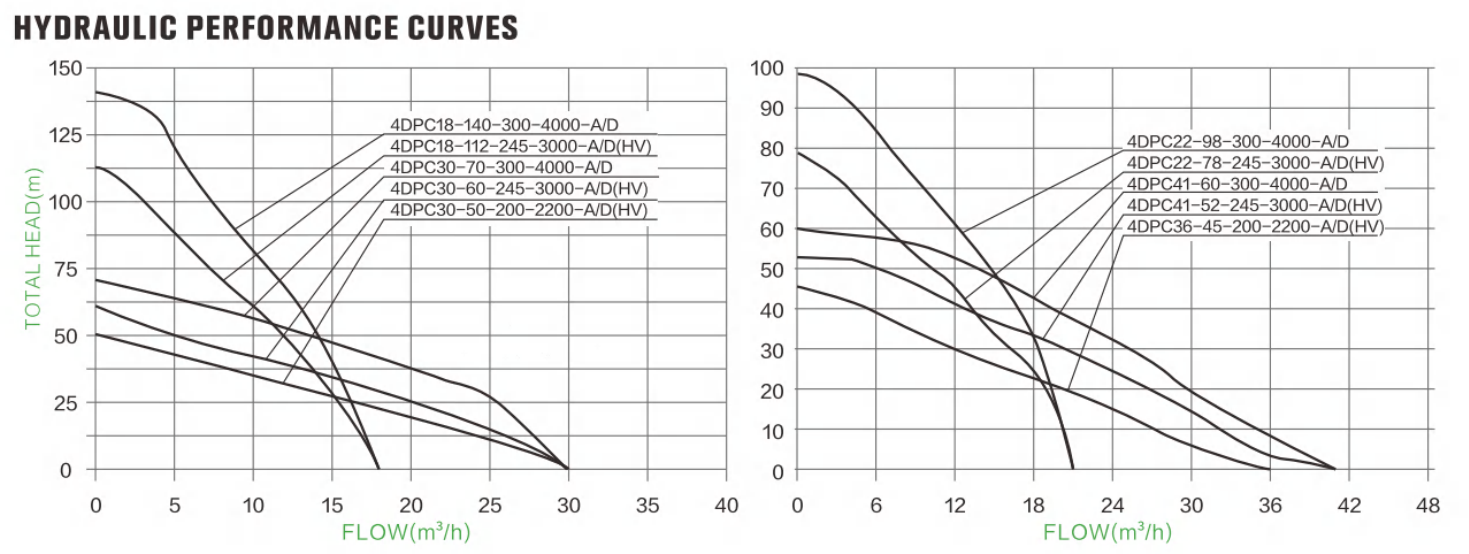

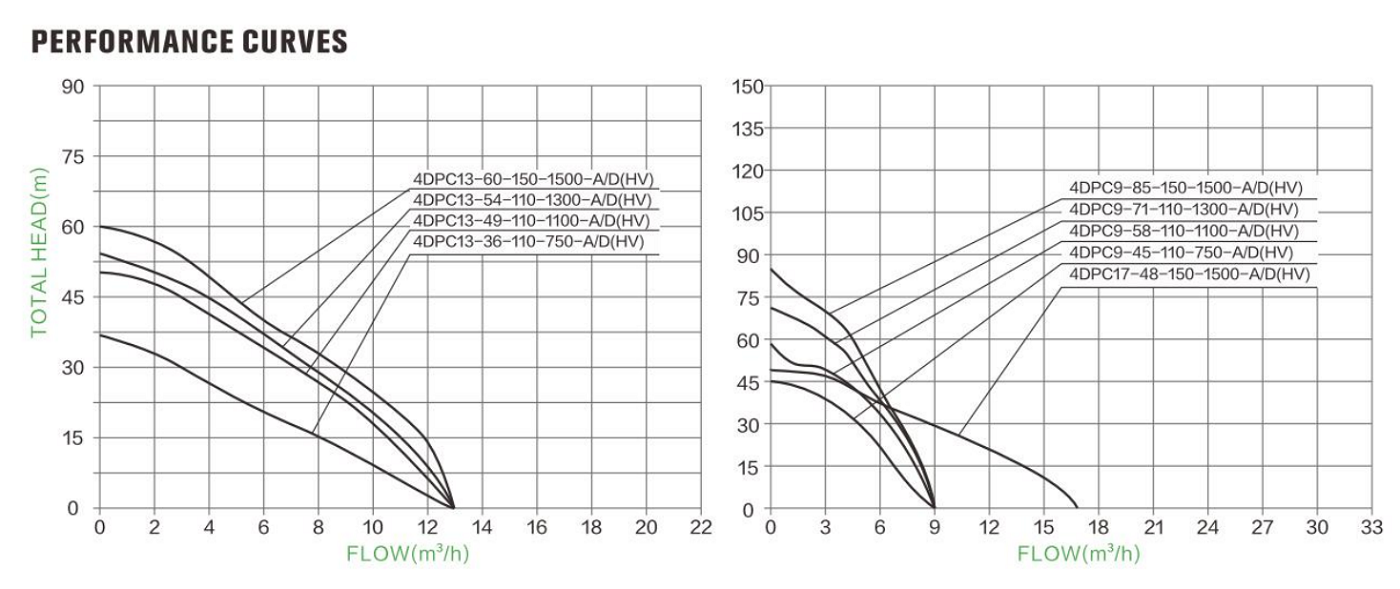

4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER

4


HOW TO CHOOSE A PUMP

Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according todifferent folw and prices.

PRODUCT PACKAGING

What we get for you: (Package Include)

  • - 1 x 4inch AC/DC solar Plastic impeller pump with one 2m cable

  • - 1 x AC/DC Pump controler with MPPT function

  • - 1 x Stainless steel float swith (sensor for tank)

  • - 1 x Pump outlet joint connector

  • - 1 x Splice kit for cable join

  • - 1 x Splice kit for waterproof

What You need to get by yourself: (Package DO NOT Include)

  • - Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

  • - Poly pipe from pump to water tank. ( recommend 1.25/2inch or over diameter poly pipe)

  • - Wire power cable (3 wires plus earth). we recommend cable size at least same than the original cable in the pump.

CONTROLLER INTERNAL WIRING DIAGRAM

controller internal wiring

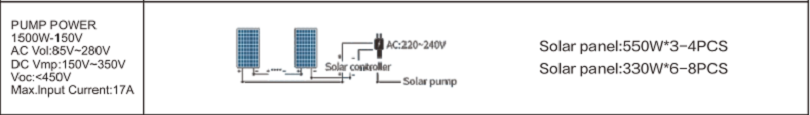

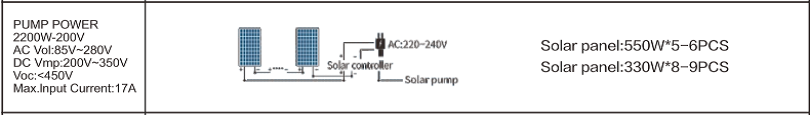

HOW TO CHOOSE SOLAR PANEL

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DPC6-56-220/300-750-A/D model matches the solar panel voltage between 120V~420V.

  • 4DPC6-56-110-750-A/D

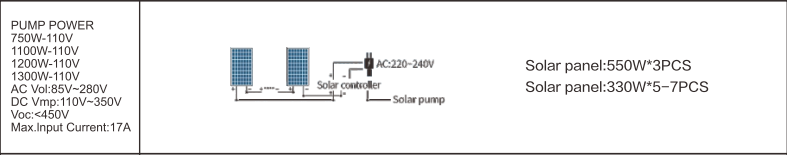

    4DPC6-56-110-750-A/D PUMP SOLAR PANEL
  • 4DPC6-84-150-1100-A/D

    4DPC6-84-150-1100-A/D PUMP SOLAR PANEL
  • 4DPC6-112-150-1300-A/D

    4DPC6-112-150-1300-A/D PUMP SOLAR PANEL
  • 4DPC6-135-200-1500-A/D

    4DPC6-135-200-1500-A/D PUMP SOLAR PANEL
  • 4DPC6-175-300-2200-A/D

    4DPC6-175-300-2200-A/D PUMP SOLAR PANEL
  • 4DPC9-45-110-750-A/D

    4DPC9-45-110-750-A/D PUMP SOLAR PANEL
  • 4DPC9-58-150-1100-A/D

    4DPC9-58-150-1100-A/D PUMP SOLAR PANEL
  • 4DPC9-71-150-1300-A/D

    4DPC9-71-150-1300-A/D PUMP SOLAR PANEL
  • 4DPC9-85-200-1500-A/D

    4DPC9-85-200-1500-A/D PUMP SOLAR PANEL
  • 4DPC9.5-125-300-2200-A/D

    4DPC9.5-125-300-2200-A/D PUMP SOLAR PANEL
  • 4DPC13-36-110-750-A/D

    4DPC13-36-110-750-A/D PUMP SOLAR PANEL
  • 4DPC13-49-150-1100-A/D

    4DPC13-49-150-1100-A/D PUMP SOLAR PANEL
  • 4DPC13-54-150-1300-A/D

    4DPC13-54-150-1300-A/D PUMP SOLAR PANEL
  • 4DPC13-60-200-1500-A/D

    4DPC13-60-200-1500-A/D PUMP SOLAR PANEL
  • 4DPC13-110-300-2200-A/D

    4DPC13-110-300-2200-A/D PUMP SOLAR PANEL
  • 4DPC17-48-200-1500-A/D

    4DPC17-48-200-1500-A/D PUMP SOLAR PANEL
